| Ebat (mm) |
DİKDÖRTGEN PROFİL AĞIRLIKLARI TABLOSU
|
|
Et Kalınlığı (mm)
|
| 0.6 |
0.7 |
0.8 |
0.9 |
1.0 |
1.2 |
1.5 |
2.0 |
2.5 |
3.0 |
4.0 |
5.0 |
6.0 |
6.3 |
8.0 |
10.0 |
| 10x20 |
0.27 | 0.31 | 0.36 | 0.40 |
0.43 | 0.52 | 0.63 |
- | - | - | - | - | - | - | - | - |
| 10x25 |
0.31 | 0.36 | 0.41 | 0.45 |
0.50 | 0.59 | 0.75 |
- | - | - | - | - | - | - | - | - |
| 10x30 |
0.37 | 0.42 | 0.48 | 0.54 |
0.60 | 0.71 | 0.87 | 1.12 |
- | - | - | - | - | - | - | - |
| 15x20 |
0.32 | 0.37 | 0.42 | 0.47 |
0.52 | 0.61 | 0.75 | 0.97 |
- | - | - | - | - | - | - | - |
| 15x25 |
0.37 | 0.42 | 0.48 | 0.54 |
0.59 | 0.70 | 0.86 | 1.12 | 1.51 |
- | - | - | - | - | - | - |
| 15x30 |
0.40 | 0.47 | 0.53 | 0.61 |
0.68 | 0.83 | 0.99 | 1.29 |
- | - | - | - | - | - | - | - |
| 15x40 |
- | 0.59 | 0.67 | 0.75 |
0.82 | 0.97 | 1.19 | 1.53 |
- | - | - | - | - | - | - | - |
| 20x25 |
- | 0.48 | 0.55 | 0.61 |
0.67 | 0.80 | 0.98 | 1.28 |
- | - | - | - | - | - | - | - |
| 20x30 |
- | 0.53 | 0.61 | 0.68 |
0.75 | 0.89 | 1.10 | 1.44 | 1.89 | 1.90 |
- | - | - | - | - | - |
| 20x35 |
- | 0.59 | 0.67 | 0.75 |
0.82 | 0.97 | 1.22 | 1.53 |
- | - | - | - | - | - | - | - |
| 20x40 |
- | - | 0.73 | 0.82 |
0.90 | 1.08 | 1.34 | 1.75 | 2.15 | 2.39 |
- | - | - | - | - | - |
| 20x50 |
- | - | - | 0.97 |
1.07 | 1.27 | 1.57 | 2.07 | 2.54 | 2.86 |
- | - | - | - | - | - |
| 25x30 |
- | - | - | 0.75 |
0.82 | 0.97 | 1.19 | 1.53 |
- | - | - | - | - | - | - | - |
| 25x35 |
- | - | 0.73 | 0.82 |
0.91 | 1.09 | 1.34 | 1.75 | 2.15 | 2.39 |
- | - | - | - | - | - |
| 25x40 |
- | - | 0.79 | 0.89 |
0.99 | 1.18 | 1.46 | 1.91 | 2.34 | 2.63 |
- | - | - | - | - | - |
| 25x50 |
- | - | - | 1.04 |
1.15 | 1.37 | 1.69 | 2.22 | 2.74 | 3.10 |
- | - | - | - | - | - |
| 30x35 |
- | - | - | 0.89 |
0.99 | 1.18 | 1.46 | 1.91 | 2.34 | 2.63 |
- | - | - | - | - | - |
| 30x40 |
- | - | 0.85 | 0.95 |
1.07 | 1.27 | 1.57 | 2.07 | 2.54 | 2.86 |
- | - | - | - | - | - |
| 30x50 |
- | - | 0.97 | 1.22 |
1.22 | 1.44 | 1.81 | 2.38 | 2.93 | 3.33 | 4.09 |
- | - | - | - | - |
| 30x60 |
- | - | - | - | - |
1.65 | 2.05 | 2.69 | 3.33 | 3.80 | 4.88 |
- | - | - | - | - |
| 30x70 |
- | - | - | - | - |
1.84 | 2.28 | 3.01 | 3.72 | 4.28 | 5.51 |
- | - | - | - | - |
| 40x50 |
- | - | - | - | - |
1.65 | 2.05 | 2.69 | 3.33 | 3.80 | 4.88 |
- | - | - | - | - |
| 40x60 |
- | - | - | - | - |
1.84 | 2.28 | 3.01 | 3.72 | 4.28 | 5.51 | 6.56 |
- | - | - | - |
| 40x80 |
- | - | - | - | - | - |
2.75 | 3.64 | 4.50 | 5.52 | 6.76 | 8.13 |
- | - | - | - |
| 40x100 |
- | - | - | - | - | - |
3.23 | 4.26 | 5.29 | 6.16 | 8.02 | 9.70 |
- | - | - | - |
| 50x60 |
- | - | - | - | - | - |
3.6 | 3.32 | 4.11 | 4.75 | 6.14 |
- | - | - | - | - |
| 50x70 |
- | - | - | - | - | - |
2.75 | 3.64 | 4.50 | 5.22 | 6.76 | 8.13 |
- | - | - | - |
| 50x90 |
- | - | - | - | - | - |
3.23 | 4.26 | 5.29 | 6.16 | 8.02 | 9.70 |
- | - | - | - |
| 50x100 |
- | - | - | - | - | - |
3.40 | 4.58 | 5.68 | 6.63 | 8.65 | 10.50 |
- | - | - | - |
| 50x150 |
- | - | - | - | - | - | - |
6.15 | 7.64 | 8.99 | 11.80 | 14.40 |
- | - | - | - |
| 60x80 |
- | - | - | - | - | - |
3.23 | 4.26 | 5.29 | 6.16 | 8.02 | 9.70 |
- | - | - | - |
| 60x100 |
- | - | - | - | - | - |
3.62 | 4.89 | 6.07 | 7.10 | 9.28 | 11.30 | 13.20 | 13.50 | - | - |
| 60x120 |
- | - | - | - | - | - |
4.08 | 5.52 | 6.86 | 8.04 | 10.5 | 12.80 | 15.10 | 15.50 | - | - |
| 80x100 |
- | - | - | - | - | - |
4.08 | 5.52 | 6.86 | 8.04 | 10.50 | 12.80 | 15.10 | 15.50 | - | - |
| 80x120 |
- | - | - | - | - | - | - | - |
8.96 | 11.70 | 14.40 | 17.00 | 17.50 | 21.40 | - |
| 80x140 |
- | - | - | - | - | - | - | - | - |
13.00 | 16.00 | 18.90 | 19.40 | 23.90 | - |
| 100x150 |
- | - | - | - | - | - | - | - | - |
14.90 | 18.30 | 21.70 | 22.40 | 27.70 | 33.40 |
| 100x200 |
- | - | - | - | - | - | - | - | - |
17.90 | 22.10 | 16.40 | 27.40 | 33.90 | 41.30 |
| 100x300 |
- | - | - | - | - | - | - | - | - | - | - |
35.80 | 37.20 | 46.50 | 57.00 |
| 120x200 |
- | - | - | - | - | - | - | - | - |
19.30 | 23.80 | 28.30 | 29.30 | 36.50 | 44.40 |
| 150x250 |
- | - | - | - | - | - | - | - | - | - |
30.10 | 35.80 | 37.20 | 46.50 | 57.00 |
| 150x300 |
- | - | - | - | - | - | - | - | - | - | - |
40.50 | 42.20 | 52.80 | 64.80 |
| 200x300 |
- | - | - | - | - | - | - | - | - |
30.50 | 37.80 | 42.20 | 47.10 | 59.10 | 72.70 |
| 200x400 |
- | - | - | - | - | - | - | - | - |
36.70 | 45.60 | 54.70 | 57.00 | 71.60 | 88.40 |
| 250x400 |
- | - | - | - | - | - | - | - | - |
39.90 | 49.60 | 54.70 | 57.00 | 71.60 | 88.40 |
| 250x450 |
- | - | - | - | - | - | - | - | - | - | - | - |
66.90 | 84.20 | 104.0 |
| 300x500 |
- | - | - | - | - | - | - | - | - | - | - | - |
76.90 | 96.70 | 120.0 |
|

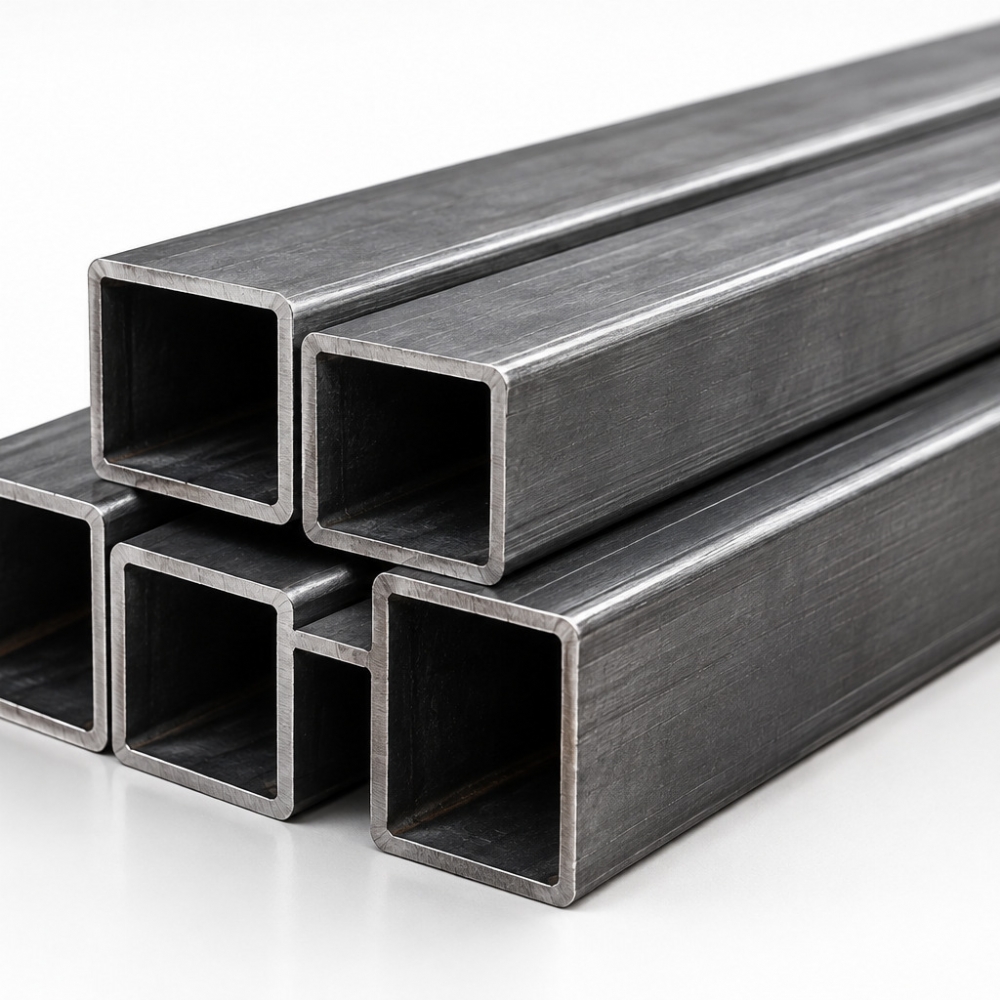

Kare Kutu Profil Ağırlık Cetveli
|
| Ölçüleri (mm) |
0.6 |
0.7 |
0.8 |
0.9 |
1.0 |
1.2 |
1.5 |
2.0 |
2.5 |
3.0 |
4.0 |
| 10x10 |
0.17 | 0.20 | 0.23 | 0.25 | 0.28 | 0.32 |
- | - | - | - | - |
| 15x15 |
0.27 | 0.31 | 0.35 | 0.39 | 0.43 | 0.52 | 0.63 |
- | - | - | - |
| 20x20 |
0.36 | 0.42 | 0.48 | 0.54 | 0.59 | 0.70 | 0.86 | 1.12 |
- | - | - |
| 25x25 |
- | 0.53 | 0.60 | 0.68 | 0.75 | 0.89 | 1.10 | 1.44 | 1.89 | 1.90 | - |
| 30x30 |
- | 0.64 | 0.73 | 0.82 | 0.90 | 1.08 | 1.34 | 1.75 | 2.15 | 2.39 | - |
| 35x35 |
- | - | 0.85 | 0.97 | 1.07 | 1.27 | 1.57 | 2.07 | 2.54 | 2.86 | - |
| 40x40 |
- | - | 0.97 | 1.09 | 1.21 | 1.44 | 1.81 | 2.38 | 2.93 | 3.33 | 4.09 |
| 50x50 |
- | - | - | - | - | 1.84 | 2.28 | 3.01 | 3.72 | 4.28 | 5.51 |
| 60x60 |
- | - | - | - | - | - | 2.75 | 3.64 | 4.50 | 5.22 | 6.76 |
| 70x70 |
- | - | - | - | - | - | 3.23 | 4.26 | 5.29 | 6.16 | 8.02 |
| 80x80 |
- | - | - | - | - | - | 3.62 | 4.89 | 6.07 | 7.10 | 9.28 |
| 90x90 |
- | - | - | - | - | - | 4.08 | 5.52 | 6.86 | 8.04 | 10.50 |
| 100x100 |
- | - | - | - | - | - | - | 6.15 | 7.64 | 8.99 | 11.70 |
|
Kare Kutu Profil Ağırlık Cetveli
|
| Ölçüleri (mm) |
3.0 |
4.0 |
5.0 |
6.0 |
6.3 |
7.1 |
8.0 |
| 50x50 | - | 5.51 | 6.56 | - | - | - | - |
| 60x60 | - | 6.76 | 8.13 | - | - | - | - |
| 70x70 | - | 8.02 | 9.70 | - | - | - | - |
| 80x80 | - | 9.28 | 11.30 | 13.20 | 13.50 | - | - |
| 90x90 | - | 10.50 | 12.80 | 15.10 | 15.50 | - | - |
| 100x100 | - | 11.70 | 14.20 | 17.00 | 17.50 | 19.40 | 21.40 |
| 120x120 | 10.80 | 14.20 | 17.40 | 20.70 | 21.40 | 23.80 | 26.40 |
| 140x140 | - | 16.80 | 20.50 | 24.50 | 25.40 | 28.30 | 31.40 |
| 150x150 | - | 18.00 | 22.10 | 26.40 | 27.40 | 30.50 | 33.90 |
| 160x160 | - | 19.20 | 23.80 | 28.30 | 29.30 | 32.70 | 36.50 |
| 180x180 | - | 21.80 | 26.80 | 32.10 | 33.30 | 37.20 | 41.50 |
| 200x200 | - | 24.20 | 29.90 | 35.80 | 37.20 | 41.60 | 46.50 |
| 220x220 | - | - | 33.20 | 39.60 | 41.20 | 46.10 | 51.50 |
| 250x250 | - | - | 38.30 | 45.20 | 47.90 | 53.70 | 60.30 |
| 260x260 | - | - | - | 47.10 | 49.10 | 56.00 | 61.60 |
| 300x300 | - | - | - | 55.10 | 57.80 | 64.90 | 72.80 |
| 350x350 | - | - | - | - | 66.90 | 75.10 | 84.20 |
| 400x400 | - | - | - | - | - | - | 96.70 |
